In today's highly networked smart industrial environment, the complexity and diversity of network architectures are becoming increasingly prominent.

 Different production equipment, control systems, and management upper computers often operate on different IP network segments, which brings flexibility but also poses challenges for interconnection and communication.

To achieve seamless communication among these heterogeneous networks and enable devices with IP addresses on different network segments to access each other, Wutongbolian offers a solution based on an industrial NAT (Network Address Translation) gateway.

 This gateway can convert IP addresses from different network segments into those on the same segment, thereby simplifying network management and enhancing data transmission efficiency.

The industrial NAT gateway facilitates network communication and data acquisition for devices such as PLCs (Programmable Logic Controllers), HMIs (Human-Machine Interfaces), CNCs (Computer Numerical Controls), DCSs (Distributed Control Systems), and MES (Manufacturing Execution Systems). It combines functions of cross-network segment isolation and IP conversion.

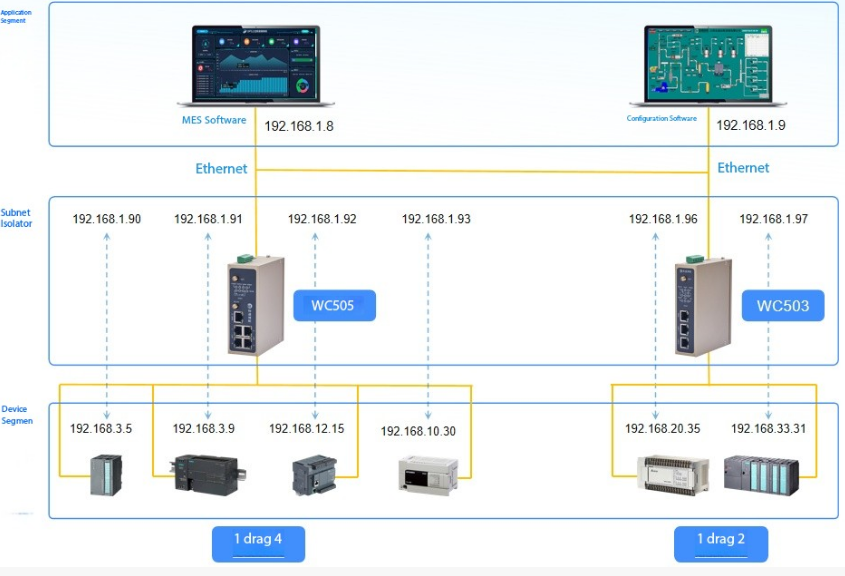

 If multiple devices in a workshop have IP addresses on different network segments, they can be unified into IP addresses on the same segment for online programming, data acquisition, remote management, and various other cross-network segment access operations on devices (e.g., PLCs, CNCs).

For example, if the industrial NAT gateway and its connected PLC both operate on the 192.168.1.x network segment, while another PLC and the upper computer device operate on the 192.168.2.x segment, the gateway can convert the connected device's IP address to the 192.168.2.x segment.

 This enables connections between the two PLCs and allows the upper computer to access PLC data for remote real-time monitoring. In case of faults, quick detection and response measures can be taken to ensure the safety and stability of production operations.

Implemented Functions:

1. Resolves IP Access Issues for Newly Purchased Devices: Addresses the problem where newly acquired devices cannot be connected to the network due to unmodifiable IP addresses.
2. Enables Communication Among Devices on Different Network Segments: Through NAT conversion, it resolves communication barriers between devices on different network segments.
3. Facilitates Unified IP Planning and Management: Through IP renaming, it achieves unified planning and management of IP addresses in the production network.
4. Enhances Network Security: By hiding the true IP addresses of devices through IP renaming, it prevents network attacks.
5. Improves Network Resilience: Through firewall network segment isolation and port restrictions, it effectively enhances resistance to network interference and attacks.
